Key Facts
| Location | San Albino-Murra Concession |
| Size of Target Area / Area Drilled | 1.3 km2 / 0.2 km2 |
| Aprox. Distance from Processing Plant | 100-500 m from San Albino mill |
| Targeted Mining Method | Open Pit and under-ground potential |
| Targeted Metal | Au, Ag |
| Targeted zones | 1) South-West pit - Mid Stage Exploration 2) San Albino Pit Extension - Mid Stage Exploration 3) Arras Extension - Early Stage Exploration 4) San Albino North - Early Stage Exploration |
| Deposit Type | Orogenic – High grade Au, shallow dipping 1-2m wide stacked veins |
| Ownership | 100% |
Description

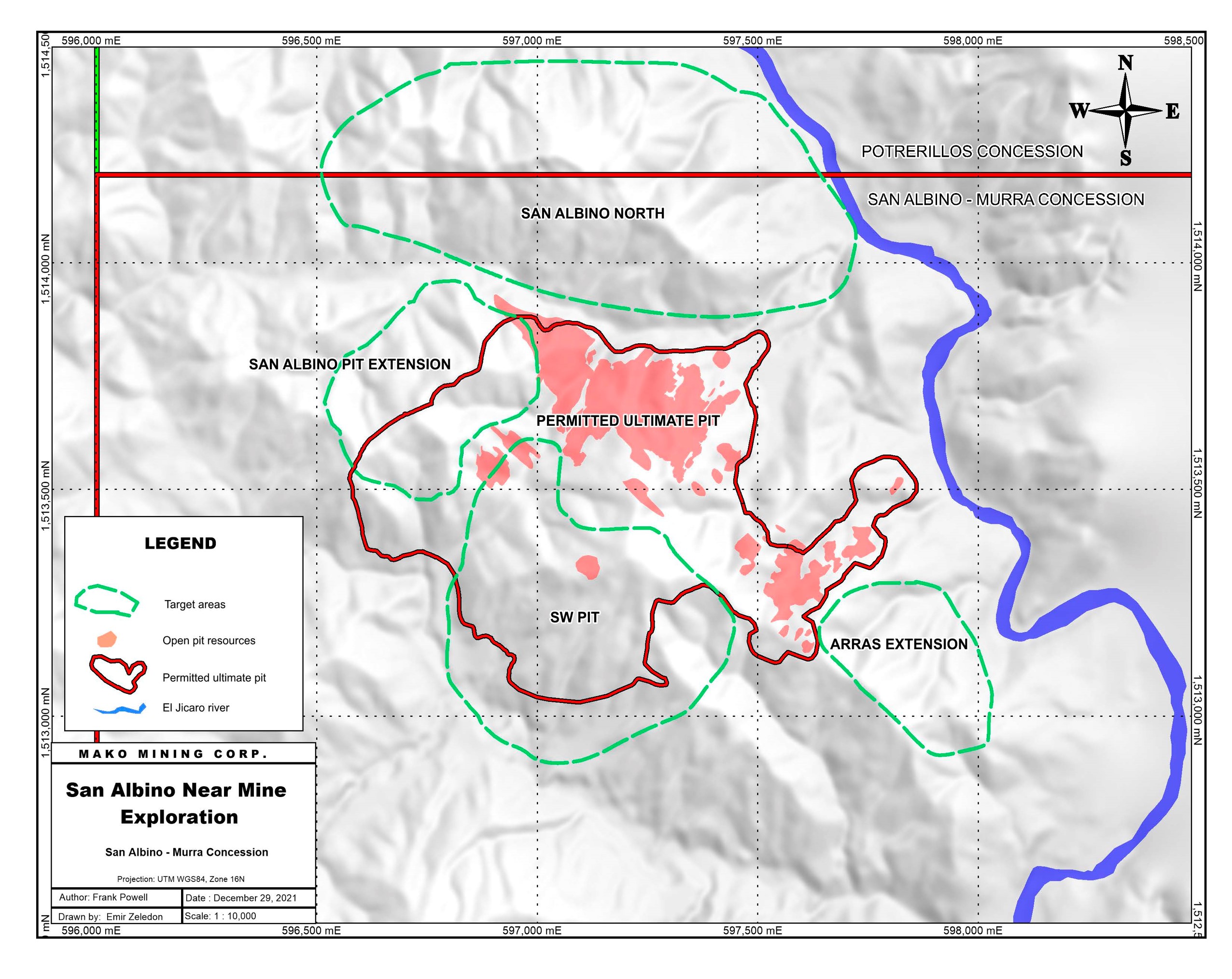

Four target areas have been identified within 500 m of the current San Albino Pit. All of these areas have nearly identical geology to the San Albino deposit which is currently in production.
Near-mine exploration targets include the San Albino pit Extension, Southwest Pit and Arras Extension targets as well as the San Albino North target.
The South West pit area is currently the highest priority since it is located within the curretly permitted pit and given sucess in delineating resources, it can be brought into production quickly.
Outlook 2022
Approximately 35,000 metres of drilling is planned for the near-mine exploration targets in 2022 with the objective of adding resources near the operating mine.
Exploration
1) South-West pit - Mid Stage Exploration
During the last 10 years, most of the exploration activities were dedicated to defining resources within the San Albino Pit. However drilling and trenching confirmed that the mineralization is still open along strike and down dip. Within the SW pit, several high grade intervals were intercepted in the initial 2011 drill program. Additionally, follow-up drilling was initiated during 2020/2021 drilling campaign with a goal to better undersand the geology before defining resources to the Company standards.
On June 21 2022, Mako reported high-grade drill results from the Southwest Pit advanced-stage exploration target, 50 metres away from current mining.
2) San Albino Pit Extension - Mid Stage Exploration
The Company has completed a definition drilling at the San Albino with the goal of delineating the geometry of mineral resources amenable to open pit mining. Several drill holes had significant intecepts outside of the previously defined pit limits and confirmed that mineralazitaion is still open along strike and down dip.
3) Arras Extension - Early Stage Exploration
The exploration conducted by the Company confirmed the possibility of defining additional shallow, high-grade resources.
4) San Albino North - Early Stage Exploration
San Albino North target lies mmediately to the north of the San Albino Gold Deposit straddling two concessions, the San Albino-Murra and the newly acquired Potrerillos concession. While this area is within a stones throw of the pit, very little exploration has been completed within the area. Prospecting over the ground identified two target areas:
1) The Cerro Piedras Negra prospect - situated approximately 380 m north of San Albino. This prospect is comprised of two collapsed adits, ten hillside cuts, two small pits and eight relatively small adits, which appear to be following a vein over a distance of 1,300 m. In total, 20 samples were collected, mostly from historic dumps, with gold values up to 33.30 g/t Au.
2) The El Callejon prospect - situated just northwest from the Cerro Piedras Negra prospect . It is comprised of a collapsed historical adit, a shaft, four historical cuts and five dumps. Sampling of a dump in front of a collapsed tunnel yielded the highest result of 21.70 g/t Au and 175.0 g/t Ag.
Exploration Highlights
1) South-West Pit - Drilling Highlights
- 42.91 g/t Au and 38.3 g/t Ag over 4.5 m;
- 34.35 g/t Au and 24.9 g/t Ag over 2.8 m.
2) San Albino Pit Extension - Drilling Highlights
- 21.61 g/t Au and 41.9 g/t Ag over 5.0 m
- 5.37 g/t Au and 20.3 g/t Ag over 4.3 m
- 20.40 g/t Au and 49.3 g/t Ag over 1.25 m
- 9.79 g/t Au and 31.3 g/t Ag over 3.3 m
3) Arras Extension- Trenching Highlights (True Width)
- 0.8 metres of 23.22 g/t Au and 38.1 g/t Ag
- 1.4 metres of 68.75 g/t Au and 91.5 g/t Ag
- 1.4 metres of 2.22 g/t Au and 6.3 g/t Ag
4) San Albino North - Prospecting Highlights
- 33.30 g/t Au in historical dump material
- 21.70 g/t Au and 175.0 g/t Ag.in historical dump material
History & Milestones
- 2009 - June - Initial option agreement signed on San Albino-Murra concession
- 2010 - Initial exploration drilling and trenching
- 2012 - April - Acquired 80% interest in San Albino-Murra concession
- 2012 - October - Acquired remaining 20% interest in San Albino-Murra concession
- 2013 - Additional Drilling
- 2016 - Metallurgical drilling
- Mar 2019 - Initiate resource definition drilling
- 2020-2021 - Extension drilling
